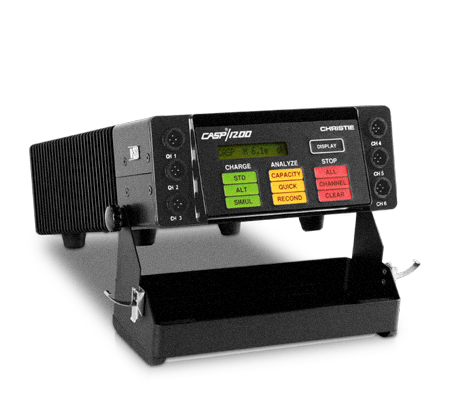

Christie CASP 1200H Charger/Analyzer

The popular CASP/1200H Universal Battery Support System is a six-channel, microprocessor-controlled battery charger/analyzer, compatible with a wide variety of rechargeable battery types. Functions include fast charge, slow charge, analyze, recondition and simultaneous charge. Rated at up to 10 amps and 78 volts with six output channels, the CASP/1200H can process a wide variety of batteries automatically. The CASP/1200H is pre-programmed via its RS-232 port. Output power is 250 watts and discharge power is 35 watts. The CASP/1200H is ideally suited for military, aerospace, aviation and critical battery analysis applications. The CASP/1200H is delivered complete with a six standard Battery Interface Cables and Operator’s Manual. Important Calibration Information: SIL2-CASP-0213


  • Reconditions ni-cd batteries
  • Exclusive Reflex Charging
  • Constant Current and Constant Potential Charging
  • Provides Rapid Charging/Processing
  • Improves cell-to-cell balance
  • Compatible with any rechargeable battery
  • Operates unattended
  • Automatically recognizes battery type
  • Small, lightweight and portable
  • Can be used worldwide

Size:8.75″ (22.23 cm) wide × 14″ (35.56 cm) deep × 4″ (10.16 cm) high Net weight: 13 pounds (5.90 kg) Color: Black

Electrical Input:
Voltage: 90 to 135VAC or 180 to 265VAC, automatically selected Frequency: 47 to 63 Hz Current: 5 amperes, maximum

Electrical Output:
Charging power: 250 watts, maximum Charging voltage: 0-78VDC Charging current: 0-10ADC Discharging power: 35 watts, maximum (optional CDC-65 Discharge Booster Available) Discharging voltage: 0-78VDC Discharging current: 0-14ADC

Electrical Display:
LCD Display, 1 Line

Environmental (Non-Operating):
Altitude: 0 to 40,000 feet Temperature: -40°C to 75°C (-40°F to 167°F) Relative humidity: 95% maximum, non-condensing Shock: 30g Vibration: 2g

Environmental (Operating):
Altitude: 0 to 10,000 feet Temperature: 0°C to 50°C (32°F to 122°F) Relative humidity: 95% maximum, non-condensing Shock: 30g Vibration: 2g
