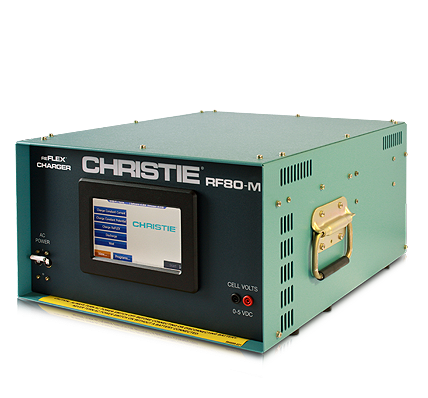

Christie RF80-M Charger/Analyzer

The NEW CHRISTIE® RF80-M® Aircraft Battery Charger/Analyzer is the latest evolution of the popular RF80 series which has been the worldwide industry standard for decades. The RF80-M is the first product of its kind to feature an advanced microcontroller with touch-screen display. The optional ABMS-10X PC Interface provides PC control, data-logging, diagnostics and expanded battery processing capabilities.



  • 7 Inch Touch Screen Display
  • Optional ABMS-10X PC Interface
  • Up to 80 amps ReFLEX® Charge, 65 amps CC/CP Charge and 60 amps Discharge
  • Manual Mode
  • Program Mode
  • Constant Current, Constant Potential and ReFLEX® charge modes
  • Alarm signals at each end of task
  • Programmable Alert
  • Proven RF80-K Power Section
  • DigiFLEX Analysis
  • Enhanced safety Features
  • CE tested and certified


  • Intuitive, easy to use, and large bright display of volts, amps and time
  • Compatible with ABMS-10X Battery Management System for PC control, individual cell monitoring, temp sensing, data-logging, diagnostics and expanded battery processing capabilities
  • Fully compatible with all battery manufacturer’s component maintenance manuals
  • Allows single or multiple charge/discharge tasks to be run in sequence
  • Battery parameters may be stored and custom task sequences saved for automatic processing
  • The only charger/analyzer offering all 3 charge modes including ReFLEX® for fast charging
  • Audible alert notifies operator when task is complete
  • User may program an alert as a reminder to check or water battery
  • Rock solid, reliable design
  • Visual indication of battery processing status
  • Buit-in limits for charge/discharge current values, times and termination
  • Complies with international CE safety standards

18.55 inches (47.12 cm) wide
11 inches (27.94 cm) high
21.5 inches (54.61 cm) deep
Weight: 145 pounds (65.90 kg)
Case material: Steel
Front Panel: Steel w/polyester overlay

Electrical Input:
Input Voltage: 187 to 250 VAC, single phase
Frequency: 47 to 63 hertz
Current: 25 amps maximum
Power Switch: Opens both sides of line

Electrical Output:
Charge ReFLEX: 1-80 amps
Charge, constant current: 1-65 amps
Charge, constant potential: 1-65 amps
Discharge, constant current:1-60 amps

Environmental (Non-Operating):
-40F +159F (-40C +71C)

Environmental (Operating):
-40F +159F (-40C +71C)
