Description

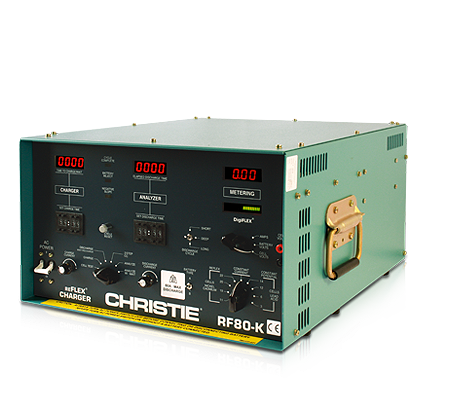

- New RF80-K PC Interface with AB3000 Controller
- Simple, Straight-Forward Operation
- Heavy Duty Design and Performance
- Digital Timers & Displays
- Charges and Analyzes All Aircraft Batteries
- Ni-Cd and Lead-Acid, all manufacturers
- Unique ReFLEX Quick-Charger
- Constant Current Charge
- 2-Step Constant Current Charge
- Constant Potential Charge, for Lead Acid
- Constant Current Discharge, for Capacity Testing
- DigiFLEX Analysis for Visual Status Indication
- Cell Voltage Balance Testing, Internal Voltmeter
- CE European Approval, RF80-K (CE)Note: The RF80-K model replaces the previous RF80H design, which was discontinued in 1991.
Mechanical:
Size: 18.5″ (47.1 cm) wide × 21.5″ (54.6cm) deep × 11″ (27.9 cm) high Cabinet: 17″(43.2cm) wide × 20.8″ (52.3cm) deep × 1.25″(26cm) high Net weight: 145 pounds (65.9 kg) Front Panel Material: Steel with polyester overlay Case material: Steel
Electrical Input:
Voltage: 110, 208, 220 VAC Frequency: 50/60 Hz Current: 25 amperes, maximum
Electrical Output:
Unique RF80-K ReFLEX Charge: 2 to 80A Constant Current Charge: 1 to 65A, maximum Constant Current Discharge: 0.2 to 60A
Electrical Display:
Current: 99.9 full scale, accuracy ±2% of full scale Individual Cell: 19.9 full scale, accuracy ±2% of full scale DigiFLEX: 10 segment trend bar display
Environmental (Non-Operating):
Ambient Temperature: -40°C to +71°C Altitude: 0 to 50,000 feet
Environmental (Operating):
Ambient Temperature: -40°C to +71°C Altitude: 0 to 50,000 feet
Warranty:
One year parts and labor The RF80-K is Distributed & Supported By: CHRISTIE Distribution & Service Center Marvel Aero International, Inc. 20381 Lake Forest Drive, Suite B3 Lake Forest, CA 92630 USA Tel: +1 949 829 8264 Fax: +1 949 829 8394 smarvel@christiecbs.com
